• High Resolution Support :With a maximum resolution of 4096 x 2160, this graphics card ensures an immersive visual experience for gamers and video creators.
• Dual Fan Cooler :The dual fan cooler design enhances heat dissipation, maintaining optimal performance even during intense gaming sessions or video editing tasks.
• VR Ready :This graphics card is VR ready, allowing you to enjoy virtual reality experiences with smooth performance and incredible detail.
• High-Speed Memory Interface :Featuring a 256 Bit high-speed memory interface, this graphics card provides fast data transfer rates for rapid gameplay and video processing.
• PCI Express 4.0 x16 Interface :The PCI Express 4.0 x16 interface ensures fast and efficient data transmission between the graphics card and the system, enhancing overall performance.

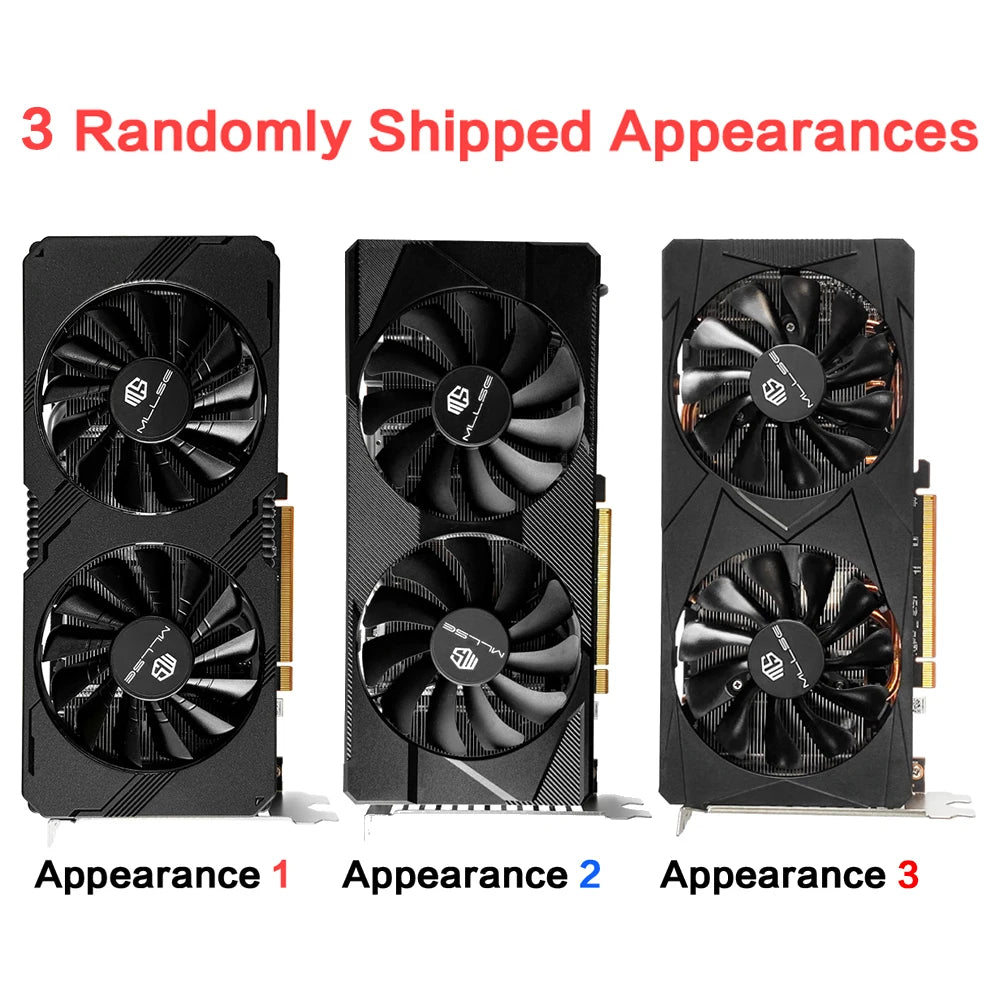

Note: Due to different production batches, there are slight differences in appearance, but the performance of the product remains unchanged, so please rest assured to buy!

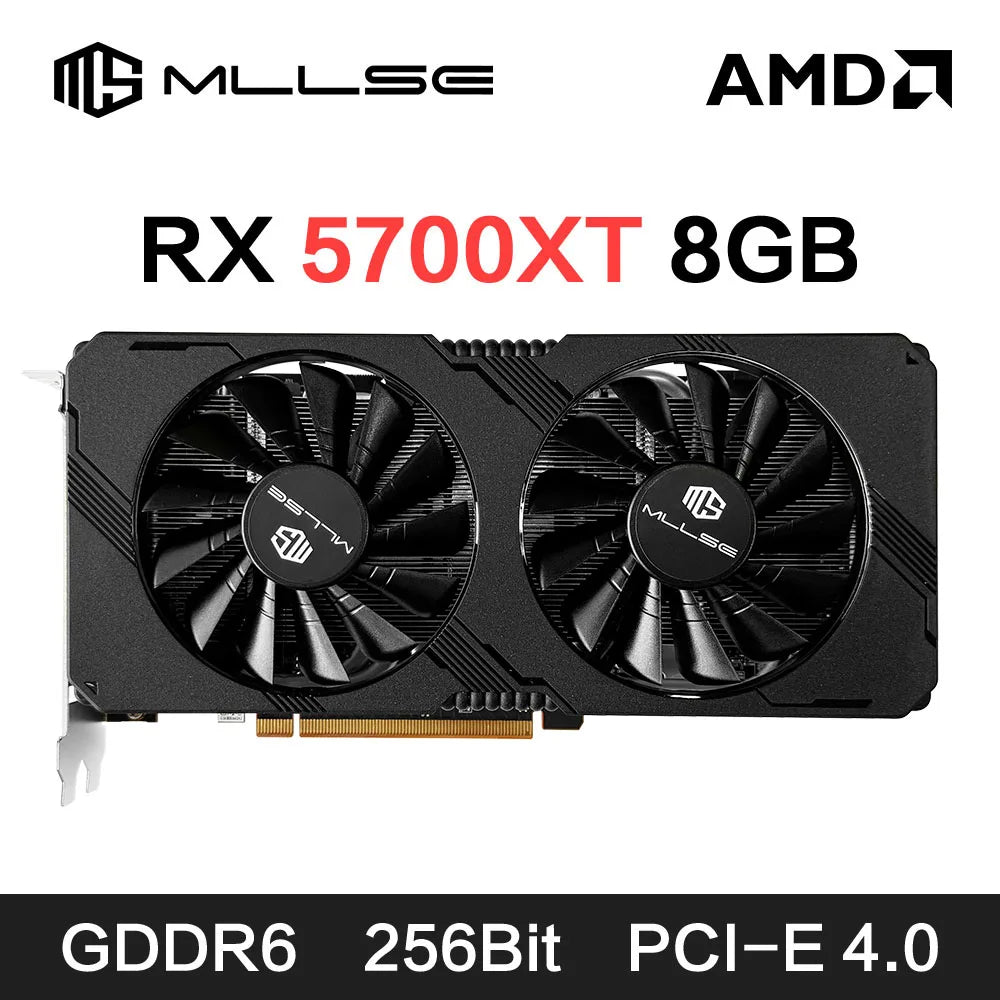

• GPU Model: AMD Radeon RX 5700XT 8GB
• Chip Code: Navi 10
• Stream Processors: 2560
• Core Clock(Mhz): 1755MHz
• Memory Clock Speed(Mhz): 14000MHz
• Video Memory Capacity: 8GB
• Video Memory Type: GDDR6
• Video Memory Interface: 256Bit
• Interface Type: PCI Express 4.0 x 16
• Output Interface Type: HDMI * 1
• Output Interface Type: DisplayPort * 3
• Power Connector: 6+8pin
• Recommended power supply ：600W or above
Dual-fans cooling system
Strong wind --- High-speed and large-size dual-fan design, double the wind to introduce airflow, and thestrong wind will dissipate heat faster.

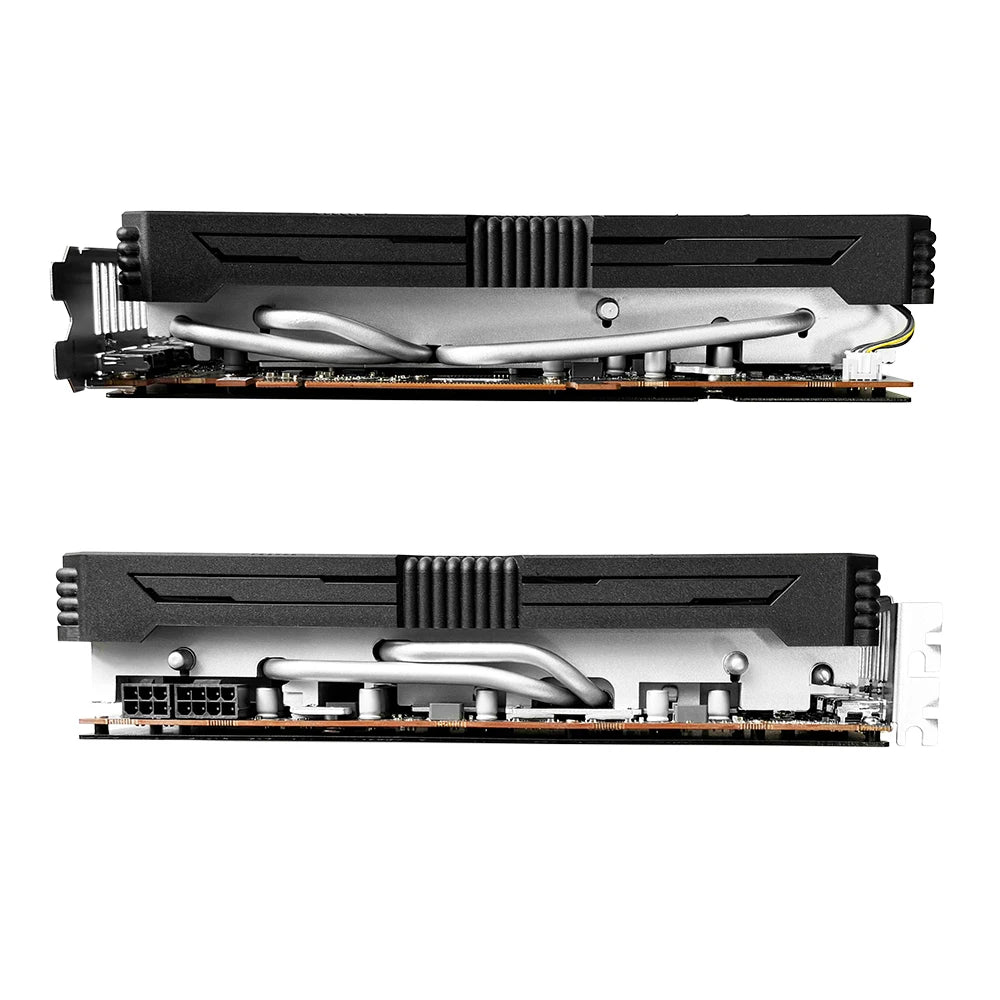

Direct copper contact And Power interface
* With the large-area heat dissipation fins, it conducts heat quickly, dissipates heat quickly, cools down quickly, and is not afraid of the high temperature of the game under full load.
* 6+8Pin Power interface

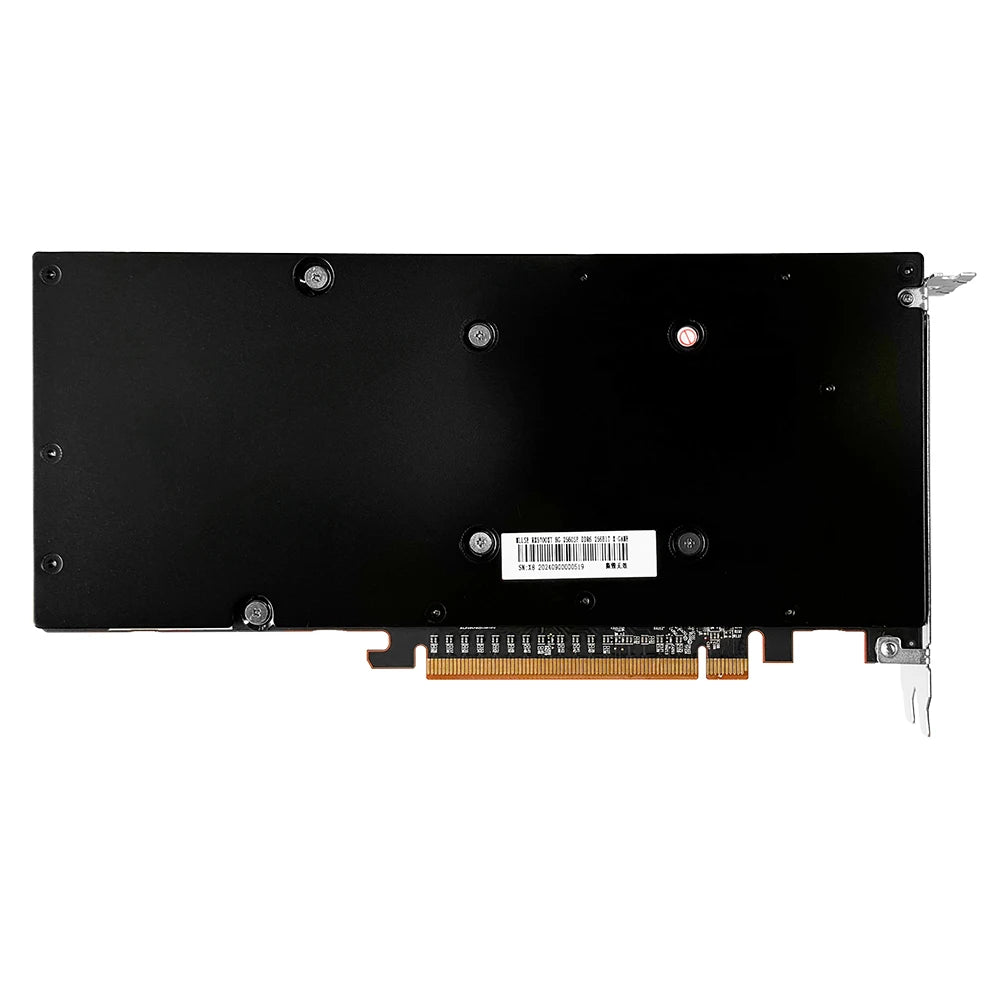

Full Size Backplate
Protect the PCB --- Full-size backplane reduces graphics card bending and PCB damage. The cutout on the back allows airflow to pass through, further improving heat dissipation.
Power Consumption 225W
High Performance Low Power Consumption , Being relaxed about gaming one whole day
Recommended minimum power supply 600W
4K HD Display
DP+HD two mainstream high-definition outputs Smooth interface and high-definition game visual experience.

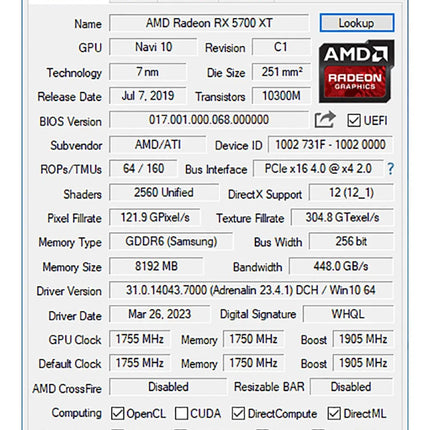

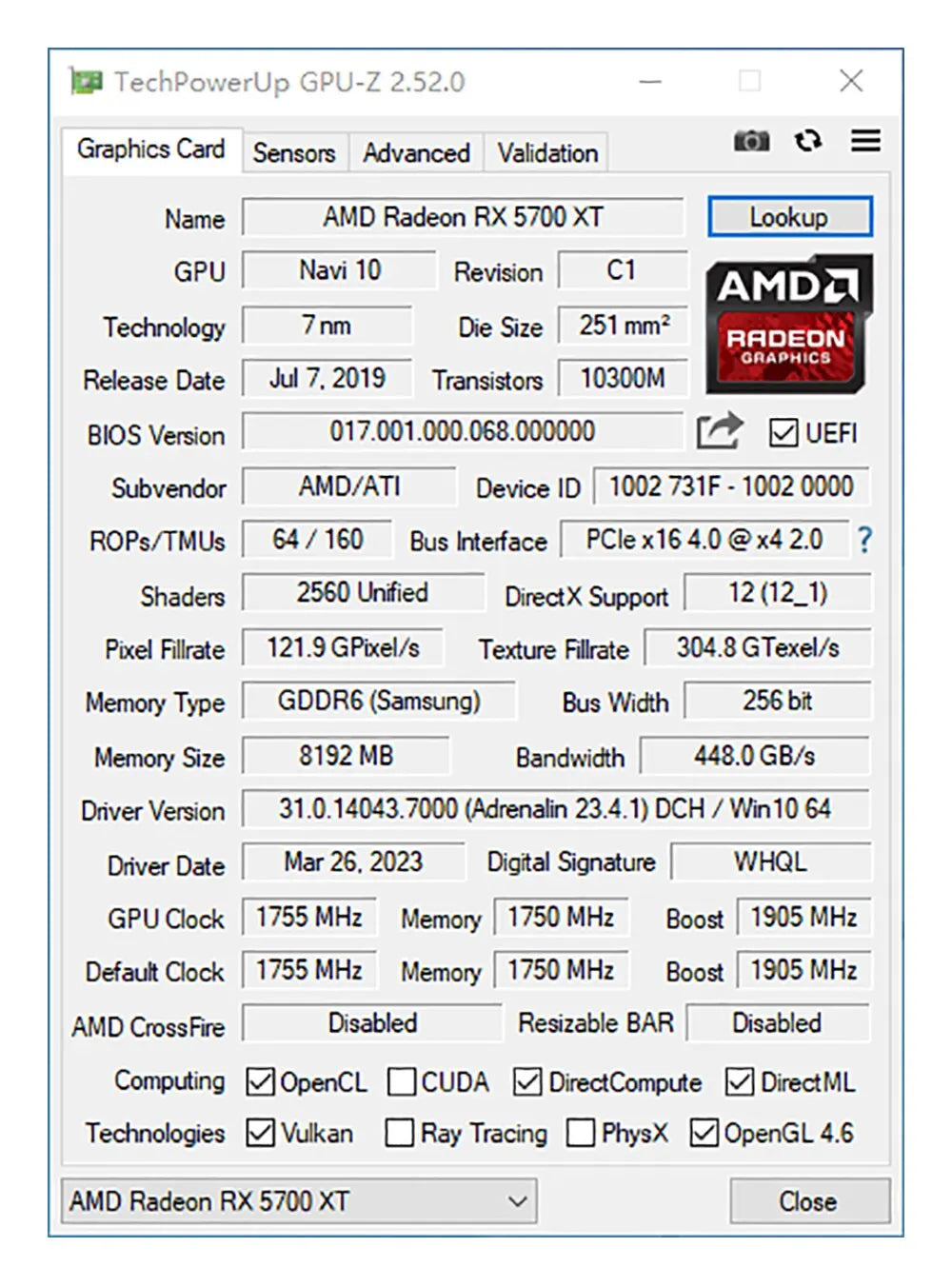

RX 5700XT 8GB Test Chart
Packaging includes :
Graphics Card*1
Warranty Card*1
User Manual*1
Fix screw*2
RX 5700XT 8G Real Photo Display
Install the graphics card
1.Turn off the computer and unplug the power cord.
2.Remove the chassis cover and find the PCle slot.(A)
3. Removethe metal back plate at the expansion slot you want to insert the graphics card in.
4. Insert PCle connector (B)to PCle slot and make sure that it is firmly inserted
5. Fix the graphics card to the expansion slot with screw (C)
6. Co nectthe coresponding PCle power connector (D) to he independent power supply inter face (E) on graphics card

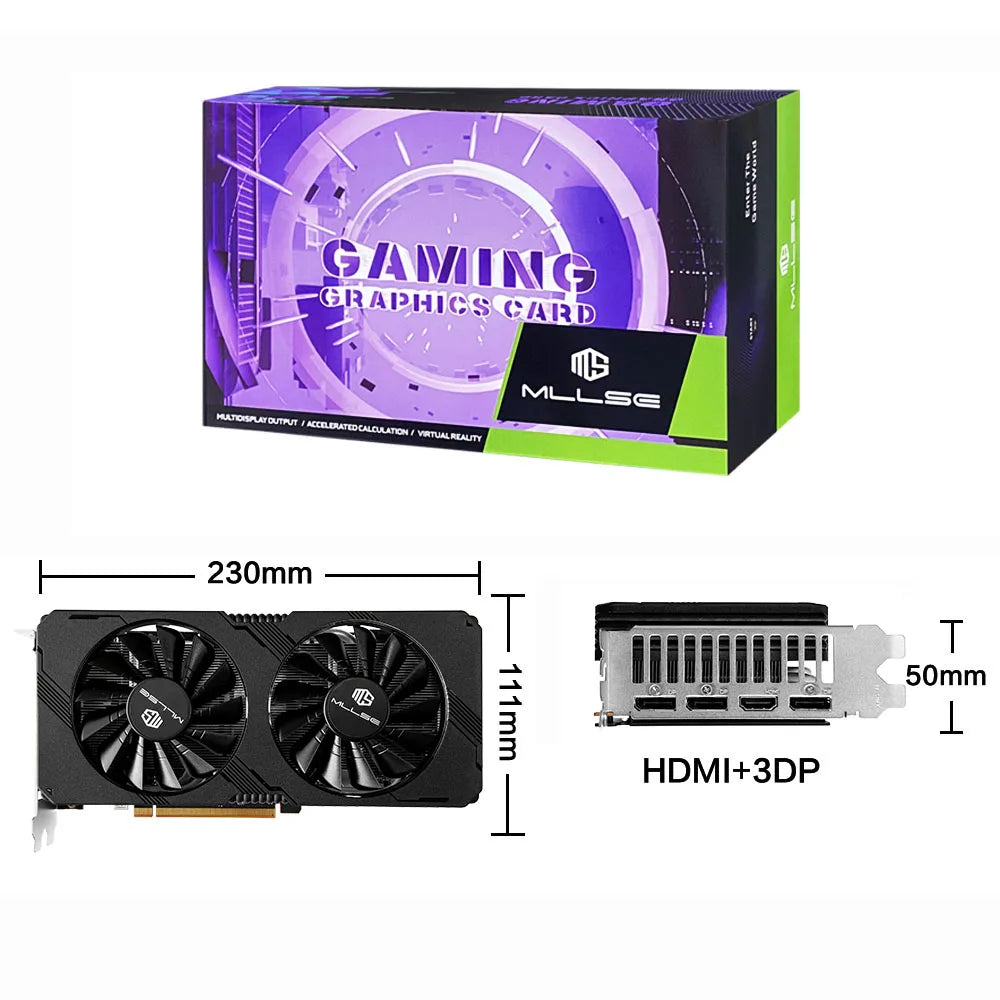

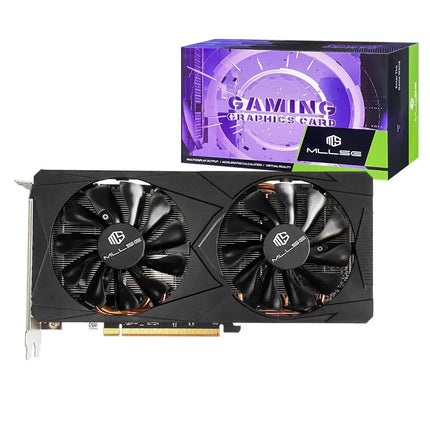

Packaging Display
Notice:
1. Under normal circumstances, the normal temperature of the graphics card should be between "30-85 ℃"
2. Even if the ambient temperature is too high in summer, the normal temperature is between "50-85°C"
3. Play some large 3D games and watch some high-definition videos, the graphics card temperature should be around 90℃
4. In fact, as long as the temperature of the graphics card does not exceed 95°C, there is generally no problem.
If the temperature exceeds 95°C, the graphics card will automatically reduce the frequency, so there is no need to worry too much.
Questions and Answers :
Q : Why do golden fingers have scratches
A : Because graphics cards undergo multiple tests before leaving the factory, this is a normal phenomenon and there is no need to worry.
Q : Where can I download the driver?
A : Go to the corresponding official website to download the driver
